Turnouts

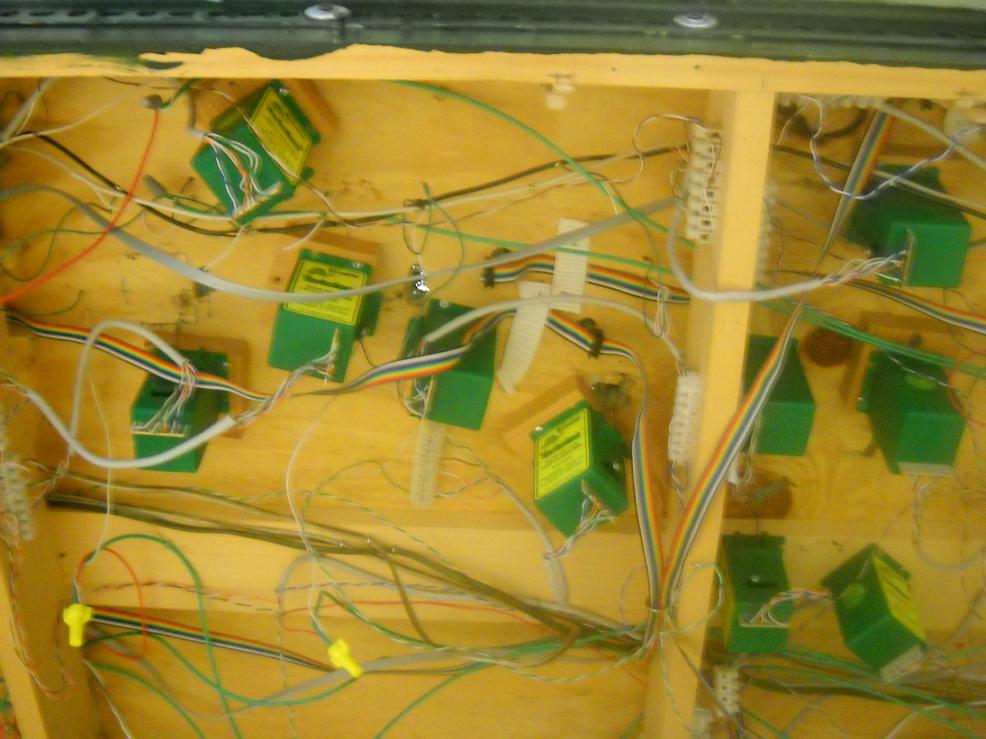

Philadelphia yard tortoises

Tortoise port connections simplified via 8 unit terminal block. Switches are not used yet.

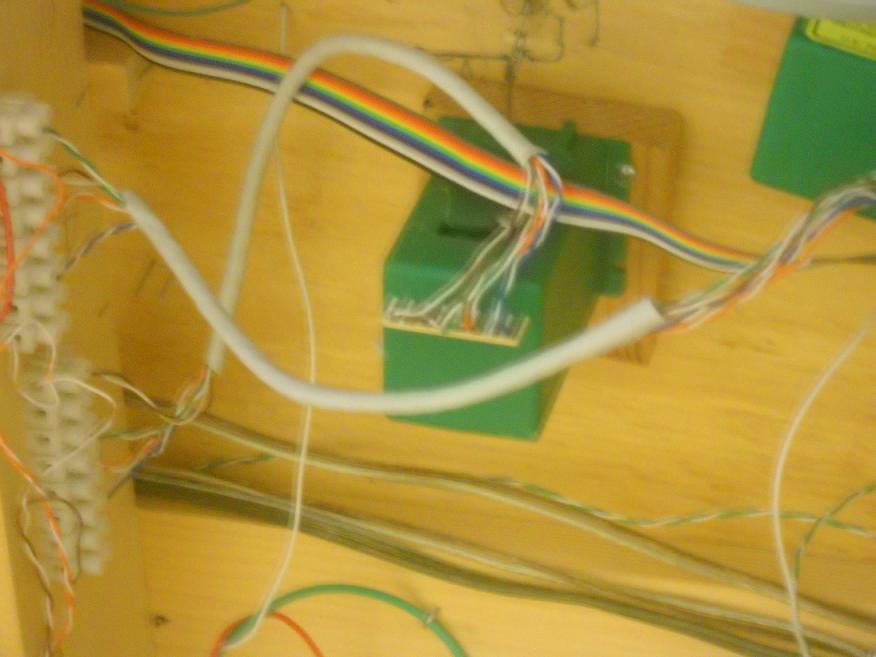

Tortoise 8 port connector; ports 1 and 8 power motor; other 6 - future frog or feedback switches

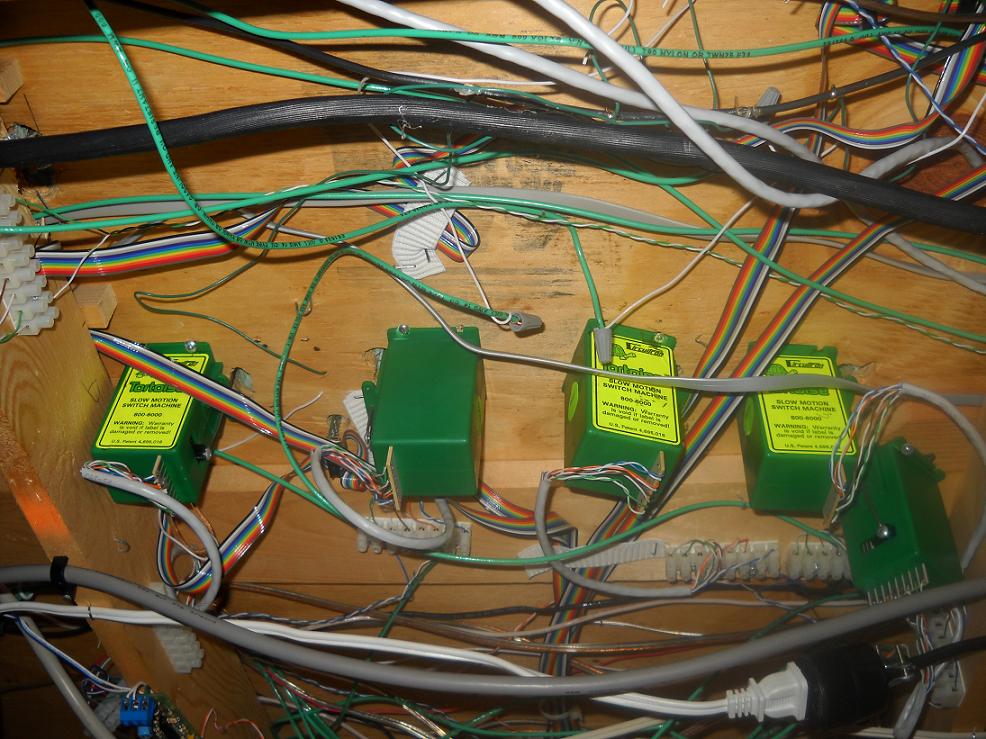

Team Digital SRC 8 powers Tortoises via multicolored ribbon cable

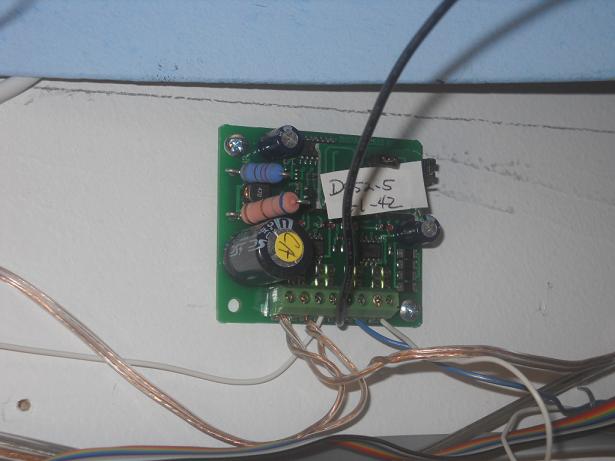

Typical DS52 drives 2 turnout motors. This one supports tortoise driving addresses 41 and 42. Turnout address management must consider various circuit board address range constraints for turnouts & other devices using DCC turnout commands (e.g. signals).
