Transponders

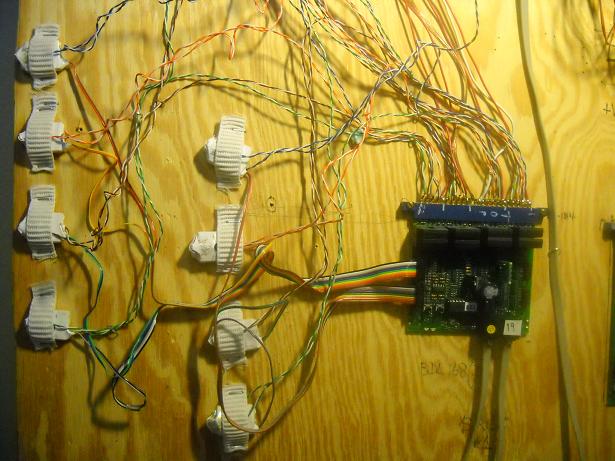

BDL168 support 8 transponders (white blobs, lower left) and 16 BOD sensors (green wires, upper left).

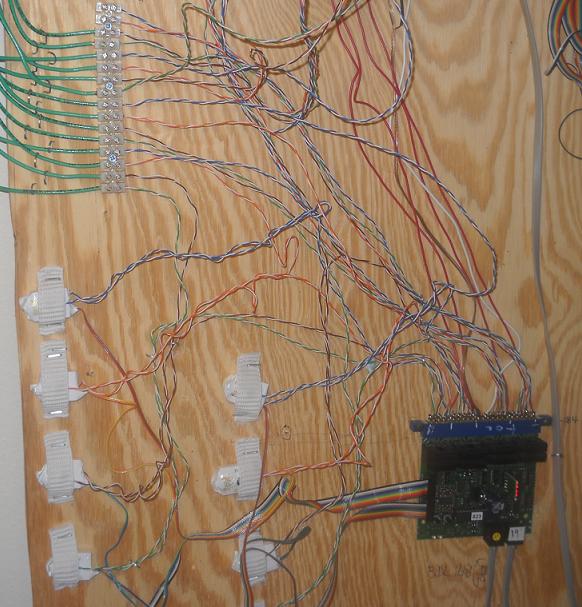

BDL168 ID #19

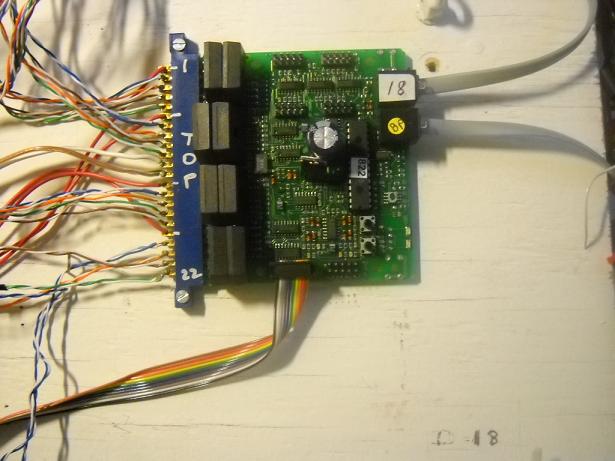

BDL168 ID #18 powering one RX4 transponder group. ID numbers chosen in accordance with sensor numbering plan avoids address conflicts with other devices.
