Stop Management

Purpose | Screen Images | Data Description | Function Descriptions | How to Use


A Stop is a point on a track segment that names the place where a train is to stop. A Stop is also called a Spot by some folks. You may have as many stops on a track segment as you require but at least one stop is required to define a train stopping place on a track segment. Every industry, yard, interchange and station must have at least one stop to support operations there.

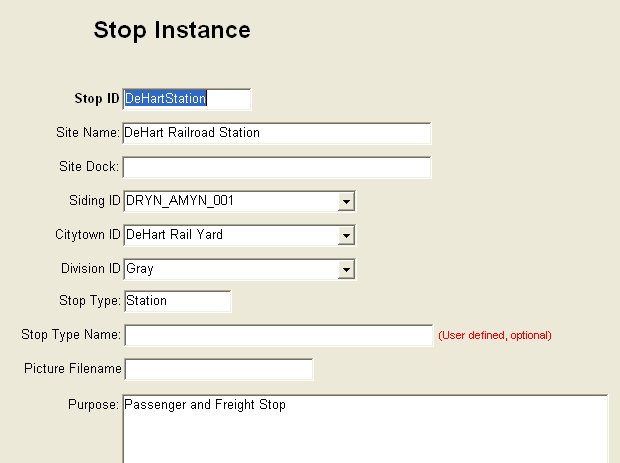

Screen Images:

Data Description:

Stop ID - unique stop ID up to 20 characters

Site Name - an optional long name for the site where the stop is located.

Site Dock, an optional string to differentiate docks at an industry (e.g. Shipping or Receiving) or station.

Siding ID - the unique Track Segment ID where the stop is located (required); use the drop-down box to pick it.

Citytown ID - the unique Citytown ID where the stop is located (required); use the drop-down box to pick it.

Division ID - the unique Division ID where the stop is located (required); use the drop-down box to pick it.

Stop Type - select type: Station, Industry, Yard_Entry, or IC_Tower from the drop-down list. If you enter anything else it is OK but MRRM will ignore the stop for some functions limited to particular types

Function Descriptions:

How to Use:

Create a stop wherever you want to command a train to stop during operations even if only occasionally
