Purpose:

The track Joiners table specifies the connection between track or tracks and turnouts including their orientation. Using the track, turnout, block, signal, and track joiners tables your railroad topology can be accurately specified and used in a number of useful ways including running trains automatically.

Screen Images:

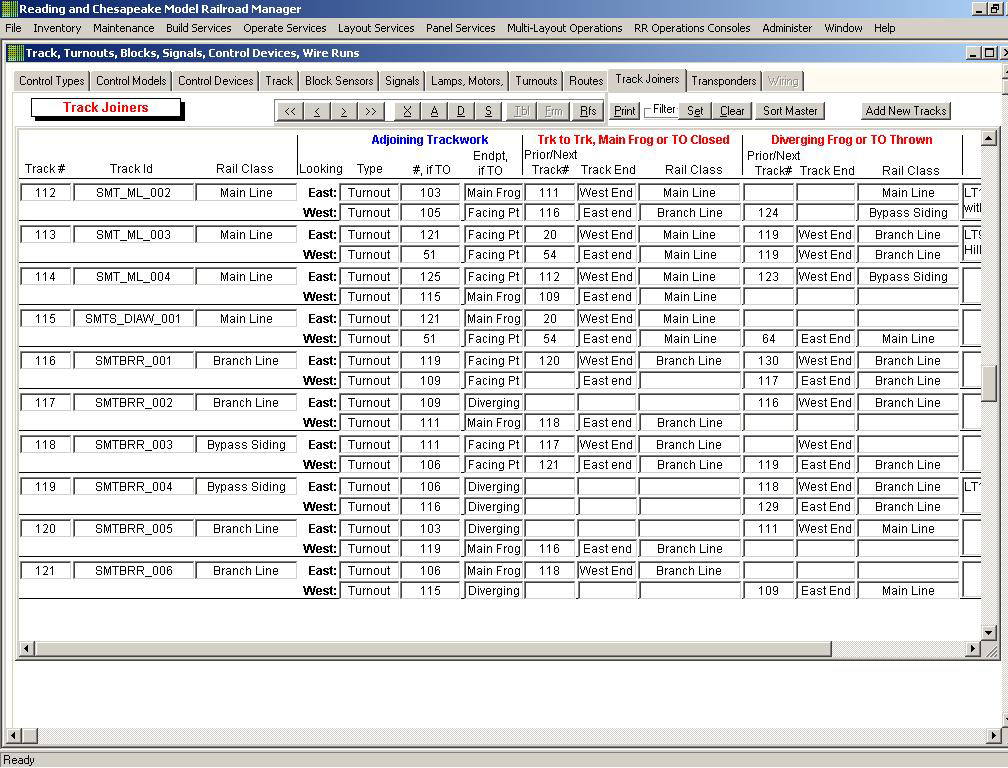

This figure shows some track joiner specifications.

Data Description:

Track # - Unique number of a track segment or siding
Track ID - Unique short name of a track segment or siding
Rail Class - class of this track

Looking East:

Adjoining Trackwork

Type - specify either a Turnout or Track is attached to the East end of this track
# if a turnout - Turnout ID of turnout connected to East end of this track
Endpoint, if a turnout - Facing Point, Main Frog or Diverging frog of Turnout is attached to East end of this track

Trk to Trk, Main Frog or TO Closed

Prior/Next Track # - Track ID of Track attached to East end of this track; either directly or through a turnout.closed at facing point or main frog leg
Track End - next track must be attached via its West end!
Rail Class - class of the next track

Diverging Frog or TO Thrown

Prior/Next Track # - Track ID of Track attached to East end of this track; either directly or through a turnout.thrown at facing point or diverging frog leg
Track End - next track must be attached via its West end!
Rail Class - class of the next track

Looking West

Adjoining Trackwork

Type - specify either a Turnout or Track is attached to the West end of this track
# if a turnout - Turnout ID of turnout connected to West end of this track
Endpoint, if a turnout - Facing Point, Main Frog or Diverging frog of Turnout is attached to West end of this track

Trk to Trk, Main Frog or TO Closed

Prior/Next Track # - Track ID of Track attached to West end of this track; either directly or through a turnout.closed at facing point or main frog leg
Track End - next track must be attached via its East end!
Rail Class - class of the next track


Diverging Frog or TO Thrown

Prior/Next Track # - Track ID of Track attached to West end of this track; either directly or through a turnout.thrown at facing point or diverging frog leg
Track End - next track must be attached via its East end!
Rail Class - class of the next track

Function Descriptions:

None directly; used by train run automaton logic

How to Use:

Specify all trackwork at least on main lines, bypasses, yard throats, and interchange throats
